PowMr USA 60A MPPT Solar Charge Controller For 12V 48V
PowMr USA 60A MPPT Solar Charge Controller For 12V 48V
Couldn't load pickup availability
Unlock cleaner, smarter solar charging with the HHJ60-PRO MPPT controller, engineered to squeeze maximum energy from 12V–48V systems.
- 100% MPPT technology helps you harvest more energy, delivering up to 99% PV utilization for faster, more efficient charging from your panels.

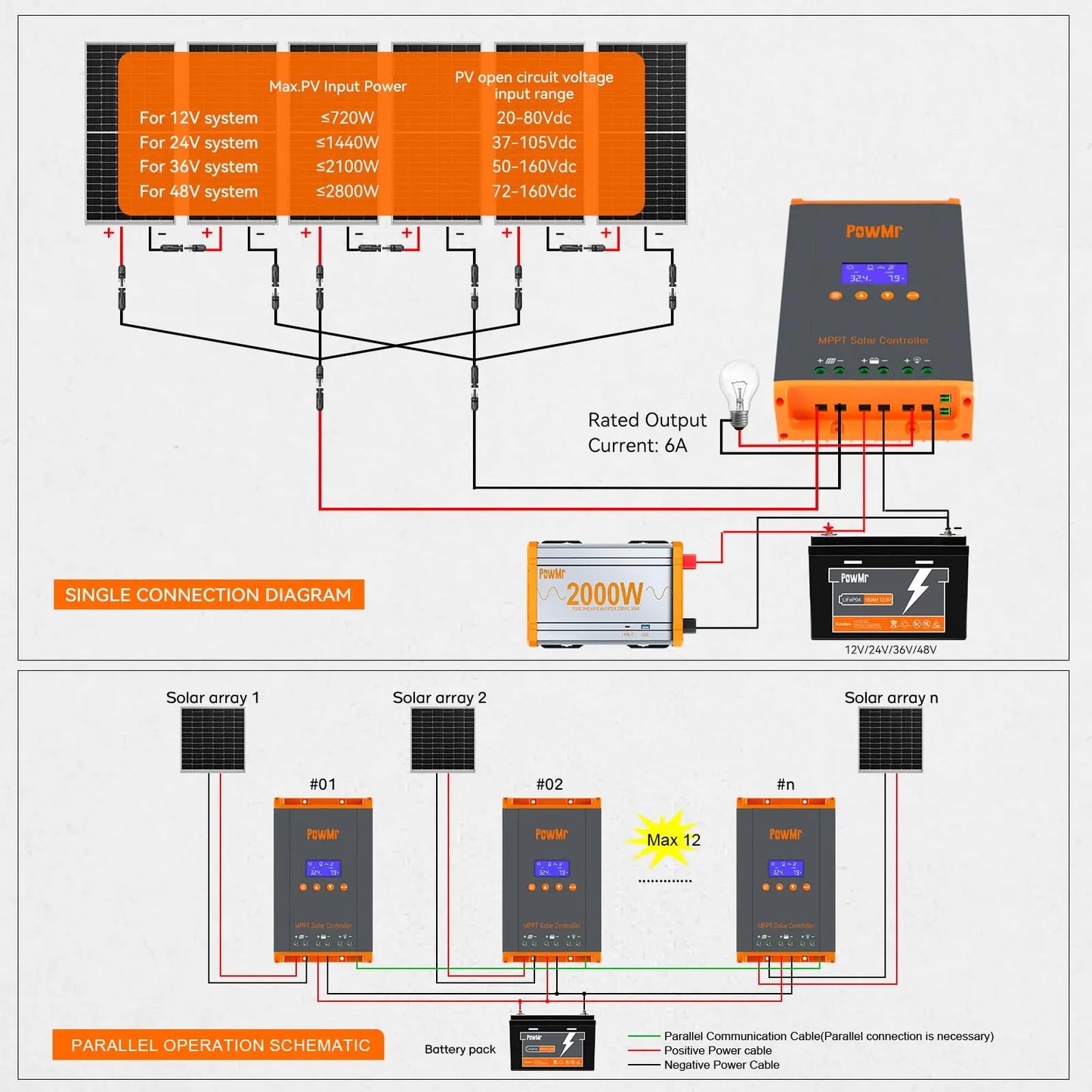

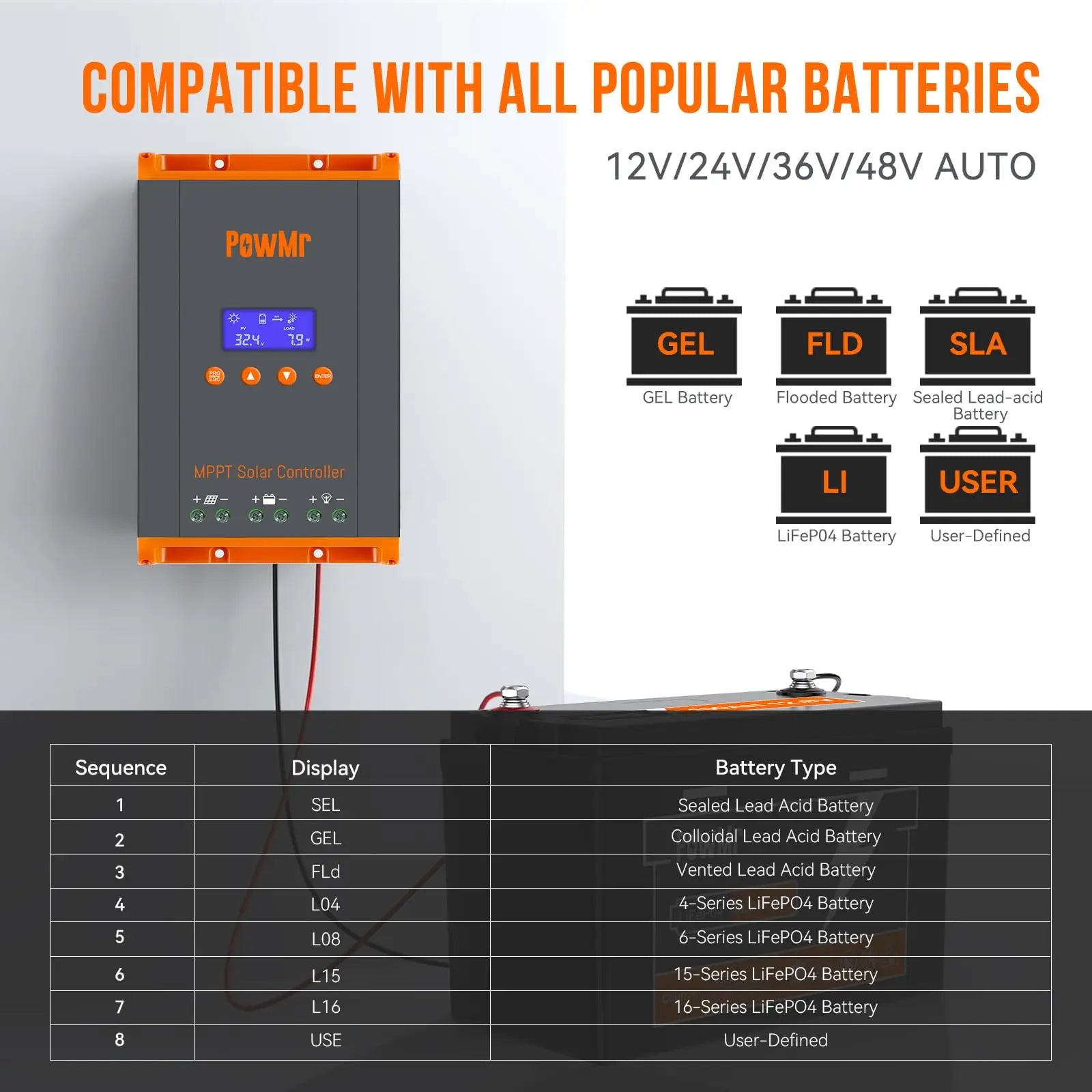

- Flexible battery support lets you run 12V, 24V, 36V, or 48V banks and connect up to 12 units in parallel, so you can scale as your system grows.
- High input power, wide range supports up to 720W (12V) to 2800W (48V) of PV input and up to 160V open-circuit voltage, giving you compatibility with larger arrays.
- User-friendly and safe features a backlit LCD, configurable charging presets, external temperature probe support, and forced-air cooling; just note the lithium warning: do not charge lithium batteries below 0°C.
Models |
HHJ-60-PRO |
Solar Input Parameters | |
Max. Solar Array Open-Circuit Voltage |
160V |
Maximum Input Power: | |
For 12V System |
720W |
For 24V System |
1440W |
For 36V System |
2100W |
For 48V System |
2800W |
Input Voltage Range: | |
For 12V System |
20V~80V |
For 24V System |
37V~105V |
For 36V System |
50V~160V |
For 48V System |
72V~160V |
Battery Charging Parameters | |
Charging Technology |
MPPT |
Charging Algorithm |
3 stages |
Battery Voltage Auto-Detection | |
12V System |
DC9V~DC15V |
24V System |
DC18V~DC29V |
36V System |
DC30V~DC39V |
48V System |
DC40V~DC60V |
Overcharge Protection Voltage |
60V |
Charging Limit Current |
61A |
Maximum Efficiency |
≥98. 1% |
Solar Utilization Rate |
≥99% |
Load Terminal Output | |
Rated Output Current |
6A |
Maximum DC Output Current |
8A |
Protection | |
Temperature Protection |
75℃ / 167 ℉ |

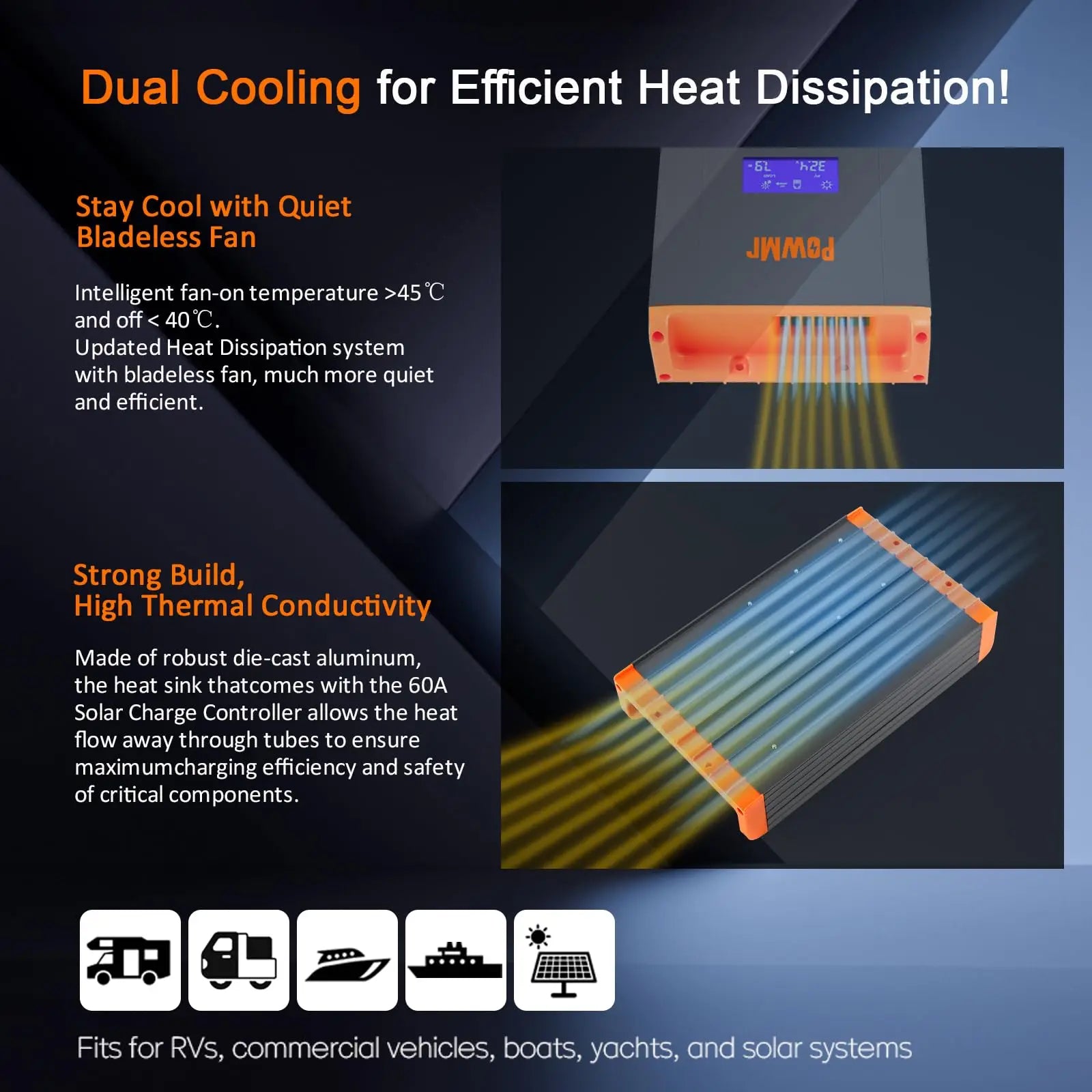

Fan Start Temperature |
>45℃ / 104℉ |
Fan Shutdown Temperature |
<40℃ / 95℉ |
General Specification | |
Dimensions |
215x130x85mm /8.46x5.12x3.35in |
Net Weight |
990g / 2.18lb |
Electromagnetic Compatibility |
EN61000, EN55022, EN55024 |
Protection Level |
IP21 |
Operating Temperature |
-20℃ ~ +55℃ / -4℉ ~ 131℉ |
Storage Temperature |
-40℃ ~ +75℃ / -40℉ ~ 167℉ |
