PowMr MPPT 60A Solar Charger Controller LCD Display
PowMr MPPT 60A Solar Charger Controller LCD Display
Couldn't load pickup availability
Power your solar setup with an ultra-efficient MPPT solar charge controller that adapts to your battery bank and sunny days.
- Advanced MPPT technology delivers up to 97% conversion efficiency and >99% MPP tracking, helping you maximize energy harvest across 12V, 24V, 36V, and 48V systems.
- Flexible battery compatibility with auto-switching among 12/24/36/48V banks and a broad 9–70V voltage range, so you can support Sealed Lead Acid, Gel, NiCd, and Lithium chemistries.
- Smart safety features include IP32 protection, overcharge and polarity-reverse protection, over-temperature protection, and low self-consumption to protect your system.

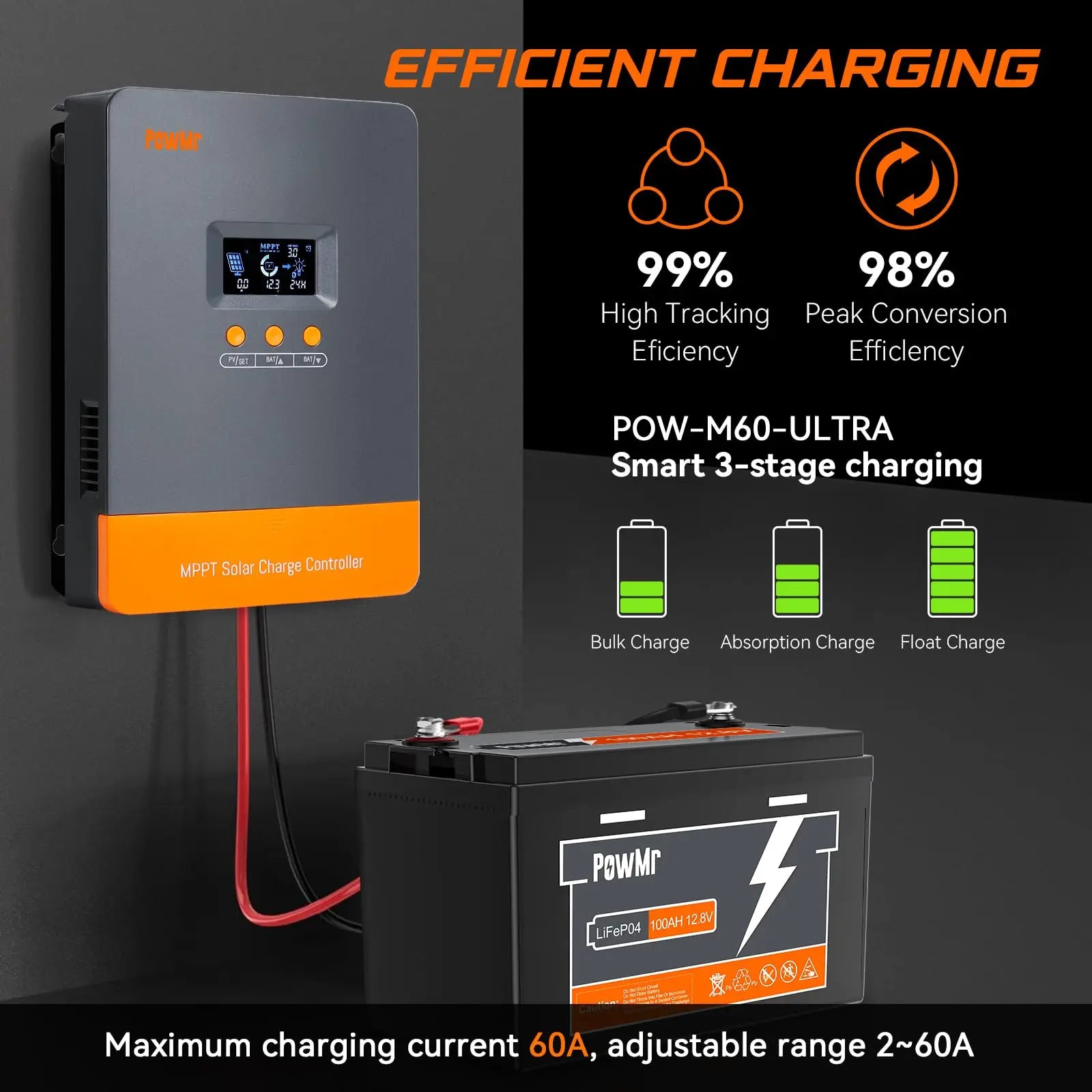

- User-friendly design with a built-in DSP controller, 3-stage charging, 100% MPPT operation, an LCD display, and one-click data restore for you to quickly set up and tune.
Model |
POW-M60-ULTRA |
Picture |
|
PV Input | |
Max Open Voltage of PV Module |
160Vdc |
Max. Input Power: | |
For 12V system |
720W 20-80Vdc; |
For 24V system |
1440W 37-105Vdc; |
For 36V system |
2100W 50-160Vdc; |
For 48V system |
2800W 72-160Vdc. |
Charge Mode | |
Charging Technology |
MPPT |
Charge Algorithm |
3-Stage |
Nominal System Voltage |
12V/24V/36V/48V |
Battery Voltage Range |
9~70V |
Rated Charging Current |
60A |
Conversion Efficiency |
≤98% |
MPP Tracking Efficiency |
>99% |
Self-consumption |
0.7W-1.2W |
DC output | |
Rated Output Current |
6A |
Max. DC Output Current |
8A |
Max. Capacitive Load Capacity |
10000µF |
Environment | |
Operating Temperature Range |
-35℃~+45℃ |
Humidity Range |
≤95%，Non-condensing |
Altitude |
<3000m |
General Specification | |
Protection Class |
IP32 |
Dimension |
230*165*72mm (9.1*6.5*2.8in) |
Net Weight |
1.33kg (2.9lbs) |
